PTFE TANK CLEANING NOZZLE
Application：
-
- Commodity name: PTFE TANK CLEANING NOZZLE
MSK® PTFE Tank Cleaning Nozzle is designed for efficient cleaning in CIP systems, offering a high-performance solution for tank cleaning without the need for an external motor. The nozzle utilizes the reactionary force of the cleaning liquid to rotate, providing powerful impact cleaning.
Key Features
- Specially Designed for CIP Systems: No motor required; the cleaning liquid’s reactionary force rotates the spray head, ensuring efficient cleaning.
- Long-Lasting Construction Material: Made from corrosion- and chemical-resistant PTFE fluoropolymer resin, offering superior durability and long service life.
- Enhanced Thermal and Mechanical Properties: Compared to standard PTFE, this material offers better thermal characteristics and higher mechanical strength, ensuring reliable performance in challenging environments.
- Adjustable Spray Angles (180° to 360°): The nozzle can clean specific areas or the entire interior of the tank, providing flexibility for various cleaning needs.
- Optimized Performance: To ensure optimal performance, use cleaning liquids that are free of debris to prevent nozzle clogging.
SPECIFICATION
Max. tank dia. 15~20 ft.
(4.3~6.0 m)Flow rate range 9.0~224 gpm
(34～850 lpm)Pressure range 10.0~50 psi
(0.7~3.4 bar)Max. operating
temperature200°F (93°C) Spray coverage 180° spraying up or down,
270° spraying up or down and 360°Inlet connection 1/2"NPT, 3/4"NPT, 1"NPT Options Filter, recommended mesh size: 100(150 microns) Inlet connection A H Spray direction 1/8"NPT Ø22.5 56 360° 1/2"NPT Ø50 60 180° spraying down 1/2"NPT Ø50 60 270° spraying down 1/2"NPT Ø50 60 360° 1/2"NPT Ø50 60 Spray up 180° 1/2"NPT Ø50 60 270° spraying up 3/4"NPT Ø57 66 180° spraying down 3/4"NPT Ø57 66 270° spraying down 3/4"NPT Ø57 66 360° 3/4"NPT Ø57 66 180° spraying up 3/4"NPT Ø57 66 270° spraying up 1"NPT Ø70 74 180° spraying down 1"NPT Ø70 74 270° spraying down 1"NPT Ø70 74 360° 1"NPT Ø70 74 180° spraying up 1"NPT Ø70 74 270° spraying up MSK® PTFE Tank Cleaning Nozzle provides an efficient, durable, and high-performance solution for tank cleaning needs, ensuring superior cleaning without the need for motorized components.
-
Ideal for use in tank cleaning applications in food, beverage, pharmaceutical, and chemical industries.
Perfect for CIP systems that require a high-efficiency, corrosion-resistant cleaning solution.
Product Details
Key Features
- Specially Designed for CIP Systems: No motor required; the cleaning liquid’s reactionary force rotates the spray head, ensuring efficient cleaning.
- Long-Lasting Construction Material: Made from corrosion- and chemical-resistant PTFE fluoropolymer resin, offering superior durability and long service life.
- Enhanced Thermal and Mechanical Properties: Compared to standard PTFE, this material offers better thermal characteristics and higher mechanical strength, ensuring reliable performance in challenging environments.
- Adjustable Spray Angles (180° to 360°): The nozzle can clean specific areas or the entire interior of the tank, providing flexibility for various cleaning needs.
- Optimized Performance: To ensure optimal performance, use cleaning liquids that are free of debris to prevent nozzle clogging.
SPECIFICATION
| Max. tank dia. | 15~20 ft. (4.3~6.0 m) |
| Flow rate range | 9.0~224 gpm (34～850 lpm) |
| Pressure range | 10.0~50 psi (0.7~3.4 bar) |
| Max. operating temperature |
200°F (93°C) |
| Spray coverage | 180° spraying up or down, 270° spraying up or down and 360° |
| Inlet connection | 1/2"NPT, 3/4"NPT, 1"NPT |
| Options | Filter, recommended mesh size: 100(150 microns) |

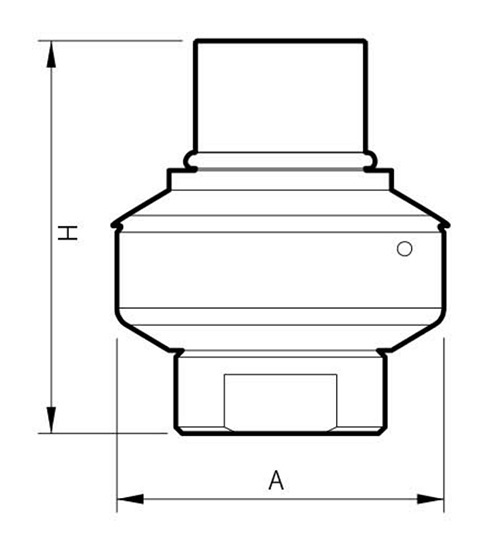

| Inlet connection | A | H | Spray direction |
| 1/8"NPT | Ø22.5 | 56 | 360° |
| 1/2"NPT | Ø50 | 60 | 180° spraying down |
| 1/2"NPT | Ø50 | 60 | 270° spraying down |
| 1/2"NPT | Ø50 | 60 | 360° |
| 1/2"NPT | Ø50 | 60 | Spray up 180° |
| 1/2"NPT | Ø50 | 60 | 270° spraying up |
| 3/4"NPT | Ø57 | 66 | 180° spraying down |
| 3/4"NPT | Ø57 | 66 | 270° spraying down |
| 3/4"NPT | Ø57 | 66 | 360° |
| 3/4"NPT | Ø57 | 66 | 180° spraying up |
| 3/4"NPT | Ø57 | 66 | 270° spraying up |
| 1"NPT | Ø70 | 74 | 180° spraying down |
| 1"NPT | Ø70 | 74 | 270° spraying down |
| 1"NPT | Ø70 | 74 | 360° |
| 1"NPT | Ø70 | 74 | 180° spraying up |
| 1"NPT | Ø70 | 74 | 270° spraying up |
MSK® PTFE Tank Cleaning Nozzle provides an efficient, durable, and high-performance solution for tank cleaning needs, ensuring superior cleaning without the need for motorized components.
