PFA AIR-OPERATED DIAPHRAGM 2 WAY VALVE
CN
PFA VALVE
MSK® PFA valves are precision-manufactured from high-purity PFA material, combined with advanced processing techniques to provide excellent corrosion resistance and chemical stability, and are able to meet the stringent requirements of high-purity fields such as semiconductors, pharmaceuticals, and biotechnology.Their internal flow path design is optimised to ensure high cleanliness and low risk of contamination in fluid transport.
Application：
-
- Commodity name: PFA VALVE
MSK® PFA valves are precision-manufactured from high-purity PFA material, combined with advanced processing techniques to provide excellent corrosion resistance and chemical stability, and are able to meet the stringent requirements of high-purity fields such as semiconductors, pharmaceuticals, and biotechnology.Their internal flow path design is optimised to ensure high cleanliness and low risk of contamination in fluid transport.
PRODUCT ADVANTAGE
- Excellent corrosion resistance: can withstand strong acids, strong alkalis and a variety of organic solvents, suitable for harsh chemical environments.
- High purity: materials and processes meet the requirements of ultra-pure fluid systems, reducing particle contamination.
- Wide temperature range: can work stably in the temperature range of -320.8℉ to 500℉.
- Good sealing performance: Precise sealing structure design prevents leakage and ensures system safety.
- Convenient installation: compact structure, simple operation, easy maintenance and replacement.
MSK® PFA valves are committed to providing customers with highly reliable and safe fluid control solutions that help industries improve productivity and product quality.
MAIN INDICATORS OF THE PRODUCT
Using fluids Pure water,chemical liquids Fluid temperature 41～248°F(Note 1, Note 2) Pressure resistance 1.0 Mpa Using pressure A→B: 0～0.5 Mpa B→A: 0～0.5 Mpa Valve seat leakage 0 cm³/min(water pressure) Back pressure 0～0.5Mpa Ambient temperature 32~140°F Note 1: Hydrofluoric acid or chemical liquids containing hydrofluoric acid should be used within a temperature range of 41–176° F.
Note 2: When using flared series fittings for piping, the temperature range is 41–212° F.Part Name Material Actuator PVDF Diaphragm PTFE Valve body PFA、PTFE Installation board PVDF
PFA MANUAL DIAPHRAGM 2 WAY VALVE
PFA CLEAN PILOT PRESSURE REGULATOR
PFA MANUAL NEEDLE VALVE
PFA SUCTION VALVE
CHECK VALVE
PFA MANUAL 2 WAY STOP COCK VALVE
-
Ultrapure Chemical Delivery and Control in Semiconductor Manufacturing
Biopharmaceutical & Medical Device Fluid Management
Chemical Process Control and Corrosive Fluid Handling
High Cleanliness Conveying Systems for the Food & Beverage Industry
Laboratory High Purity Chemical Handling
E-mail：
Get a Quote
Product Details
PRODUCT ADVANTAGE
- Excellent corrosion resistance: can withstand strong acids, strong alkalis and a variety of organic solvents, suitable for harsh chemical environments.
- High purity: materials and processes meet the requirements of ultra-pure fluid systems, reducing particle contamination.
- Wide temperature range: can work stably in the temperature range of -320.8℉ to 500℉.
- Good sealing performance: Precise sealing structure design prevents leakage and ensures system safety.
- Convenient installation: compact structure, simple operation, easy maintenance and replacement.
MSK® PFA valves are committed to providing customers with highly reliable and safe fluid control solutions that help industries improve productivity and product quality.
MAIN INDICATORS OF THE PRODUCT
| Using fluids | Pure water,chemical liquids |
| Fluid temperature | 41～248°F(Note 1, Note 2) |
| Pressure resistance | 1.0 Mpa |
| Using pressure | A→B: 0～0.5 Mpa |
| B→A: 0～0.5 Mpa | |
| Valve seat leakage | 0 cm³/min(water pressure) |
| Back pressure | 0～0.5Mpa |
| Ambient temperature | 32~140°F |
Note 1: Hydrofluoric acid or chemical liquids containing hydrofluoric acid should be used within a temperature range of 41–176° F.
Note 2: When using flared series fittings for piping, the temperature range is 41–212° F.
| Part Name | Material |
| Actuator | PVDF |
| Diaphragm | PTFE |
| Valve body | PFA、PTFE |
| Installation board | PVDF |

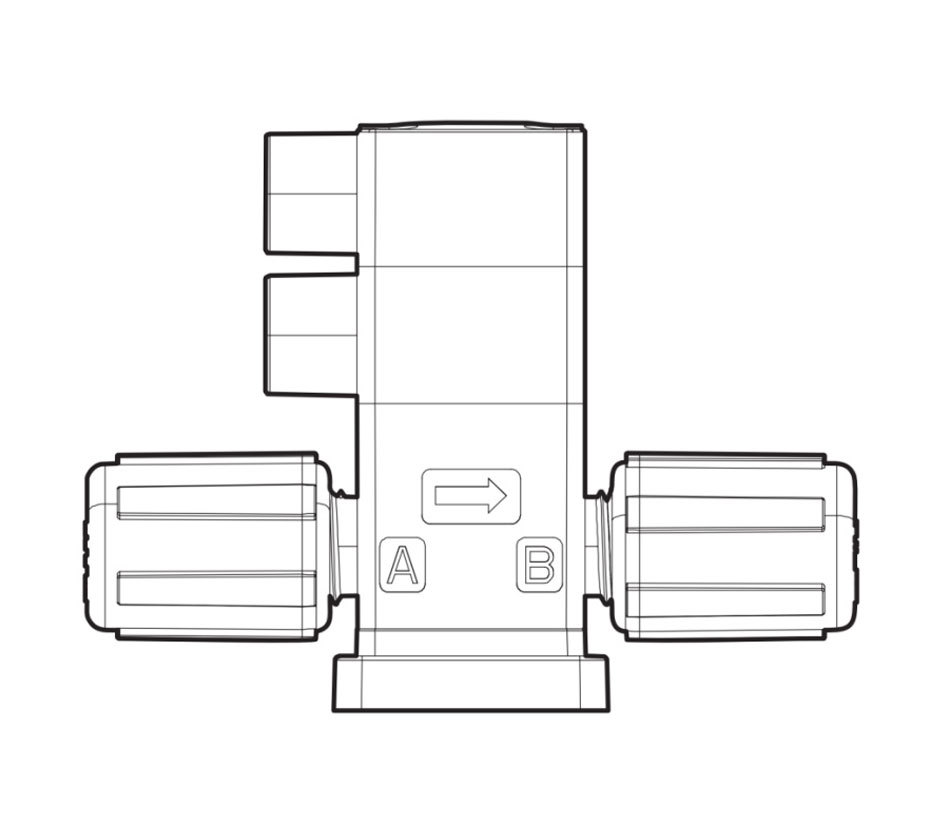

PFA AIR-OPERATED DIAPHRAGM 2 WAY VALVE

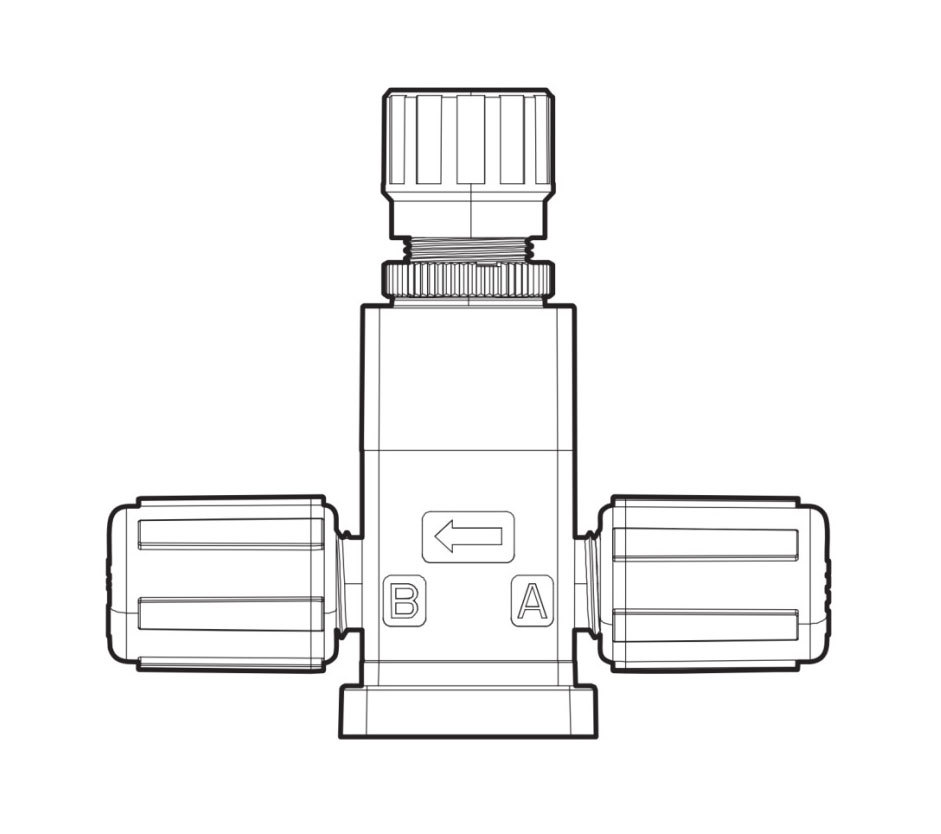

PFA MANUAL DIAPHRAGM 2 WAY VALVE

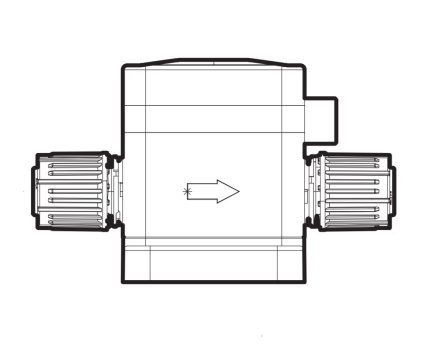

PFA CLEAN PILOT PRESSURE REGULATOR

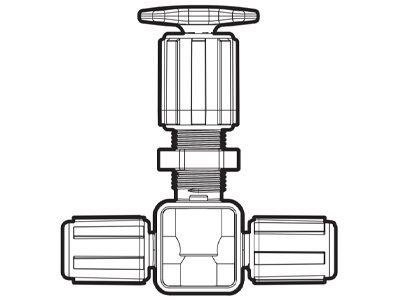

PFA MANUAL NEEDLE VALVE

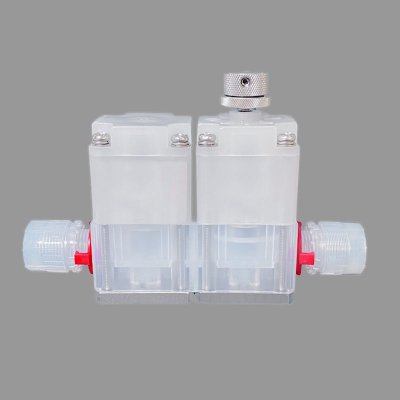

PFA SUCTION VALVE

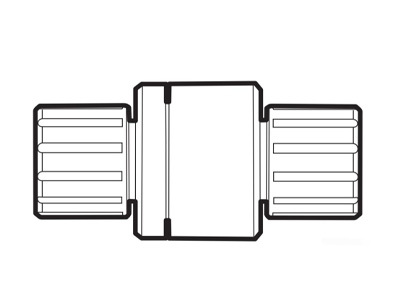

CHECK VALVE

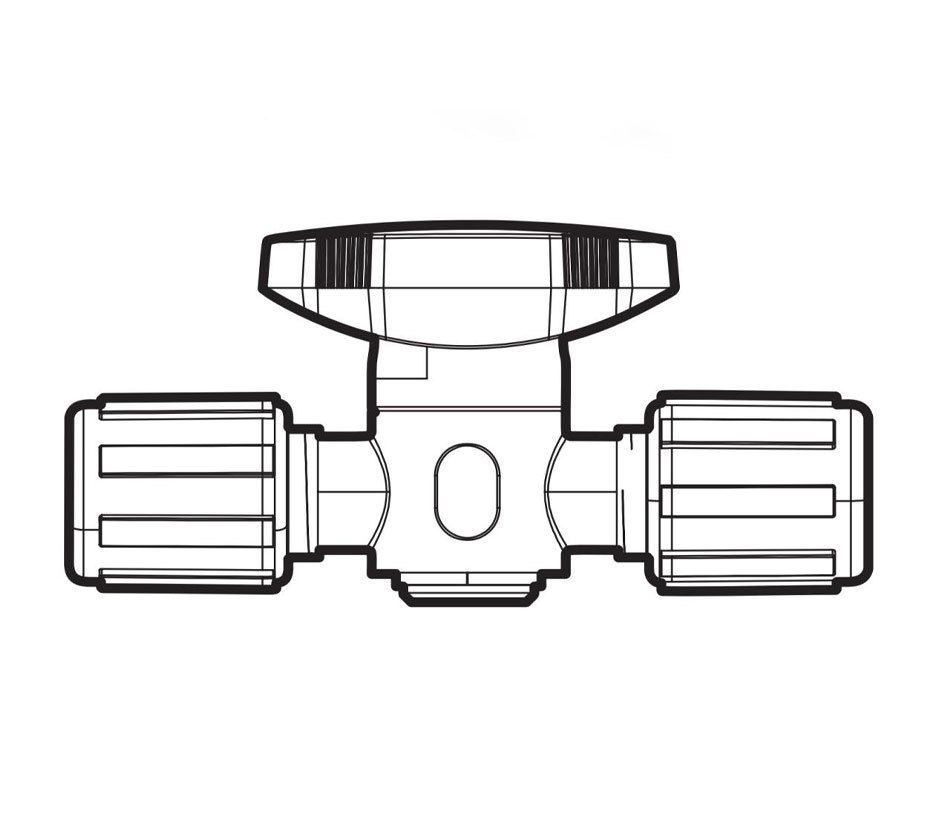

PFA MANUAL 2 WAY STOP COCK VALVE
